ERA-PRDCR-STROBE Warehouse & Business Motion Entry Alert Strobe Chime Kit

Do you need a long-range entrance alert that features a bright strobe light to alert you when a visitor arrives?

The ERA-PRDCR-STROBE is a Warehouse & Business Motion Entry Alert Strobe Chime Kit is a kit that features a long-range motion-based sensor (PIR) and a plugin chime receiver with a transmission range of up to 4,000 ft.

The sensor in this kit is the ERA-PIR sensor which is the type of sensor you need for a door that stays open (or occasionally stays open) or if you have an open area you would like to monitor.

If you need a system with a door contact (door stays closed), please visit the WDK-ERA-STROBE kit and/or the WDK-ERA-KIT.

This kit is similar to the ERA-PRDCR kit, but also features a bright flashing strobe light that will flash when a visitor passes through the monitored zone.  The strobe is good for loud areas like large warehouses or workshops, but also for quiet areas where you don't want sound.

The sensor/transmitter mounts over the zone you would like to monitor using the included aluminum bracket.  This bracket makes it easy to rotate/pivot the senor so you can fine-tune the monitored zone you want to create.

When triggered, the sensor will transmit a wireless signal up to 4,000 ft. to the plug-in receiver.  The receiver has four zones and each zone will play 1 of 12 selected melodies.  Up to 3 transmitters/sensors may be paired to a zone, and an unlimited number of receivers may be paired with a transmitter/receiver.

For additional information on the receiver and sensor, please visit the ERA-PRDCR product page.

ERA-PRDCR-STROBE Warehouse & Business Motion Entry Alert Strobe Chime Kit Strobe Features:

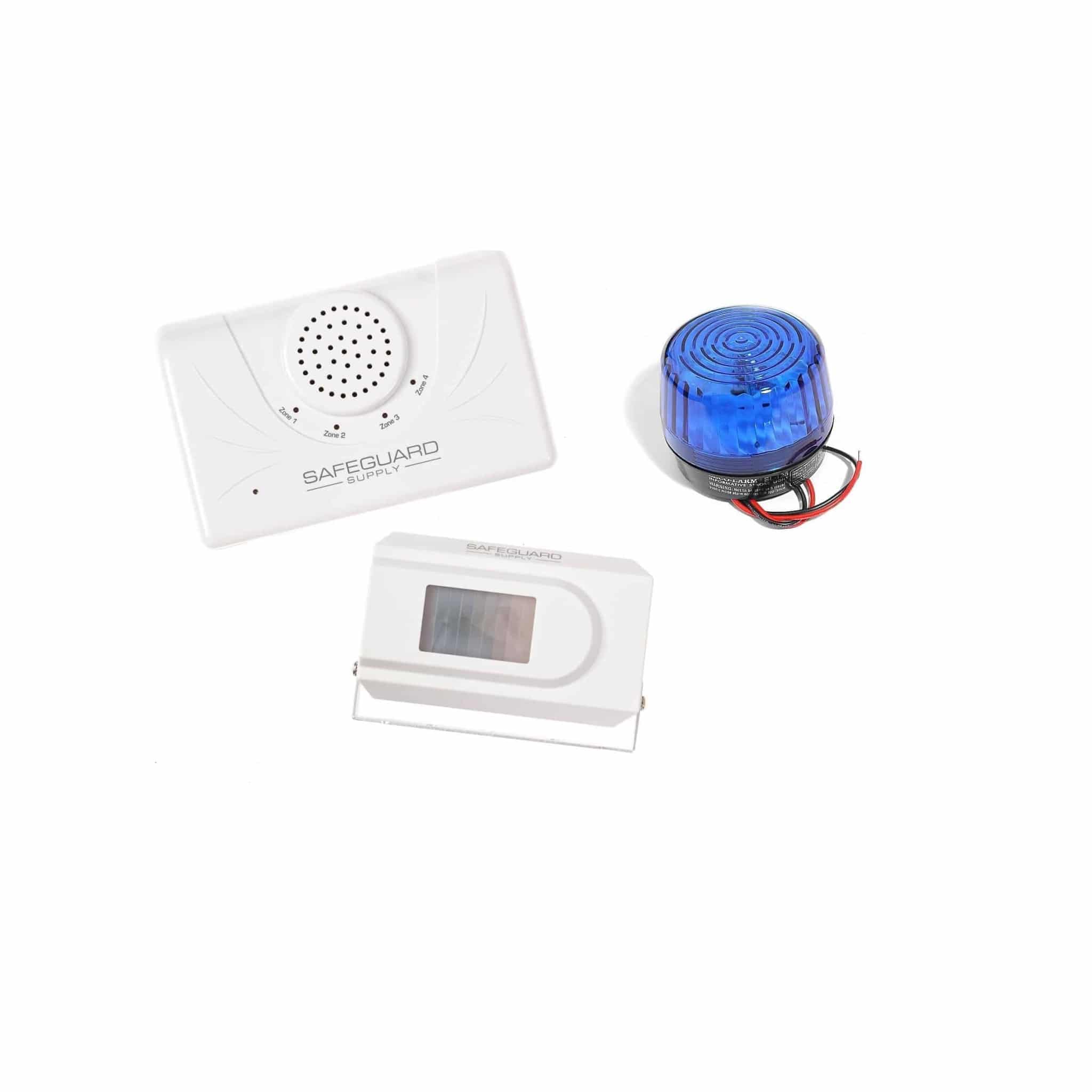

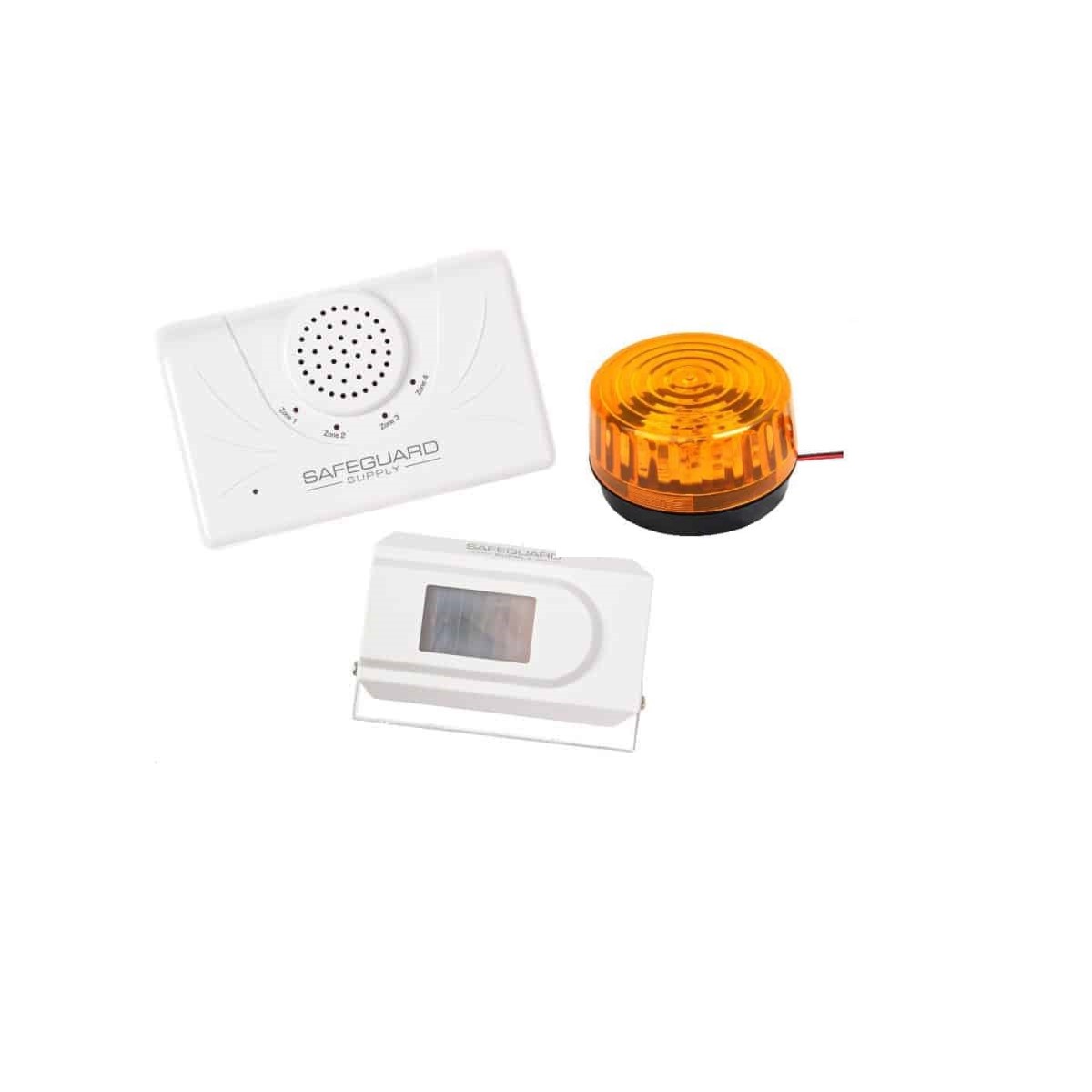

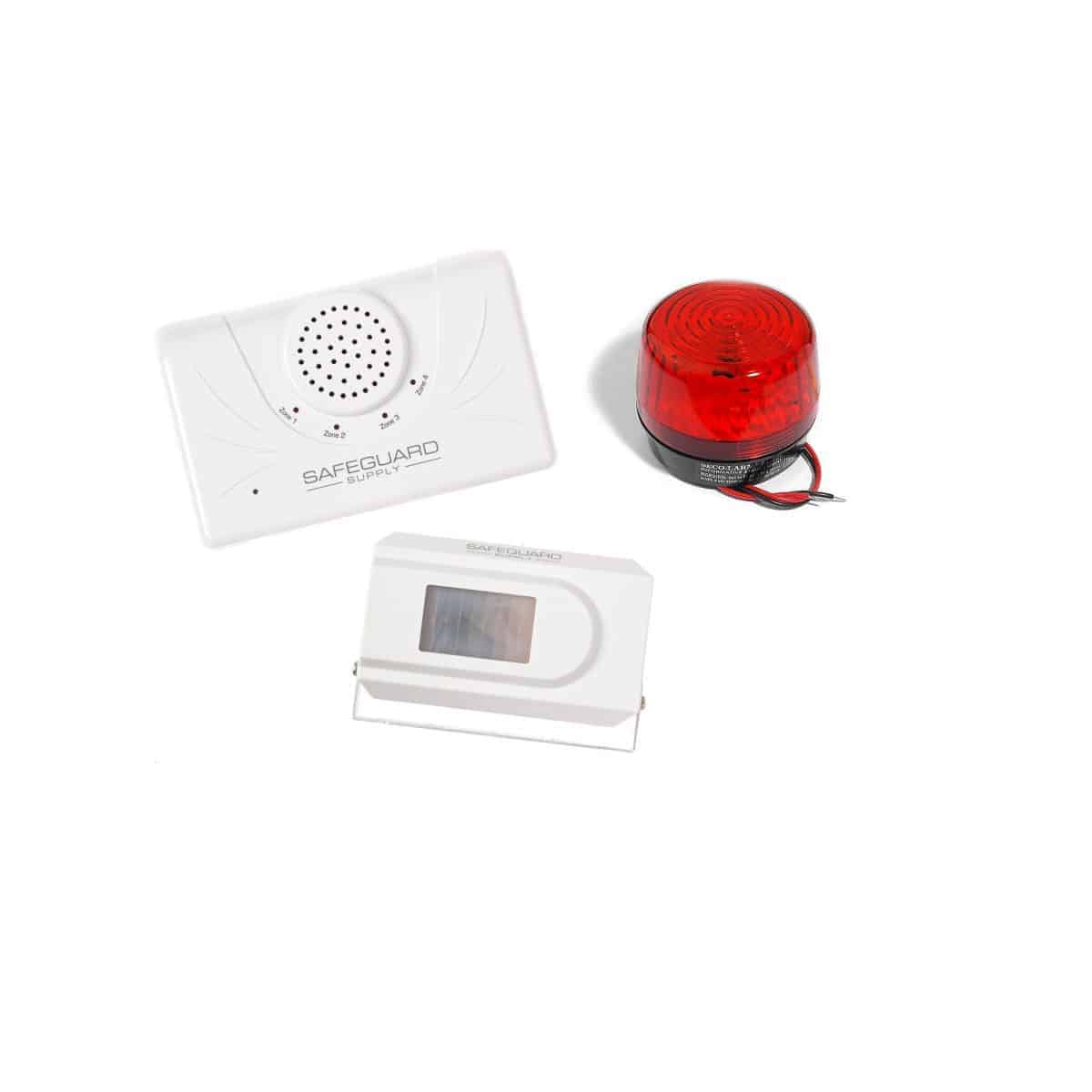

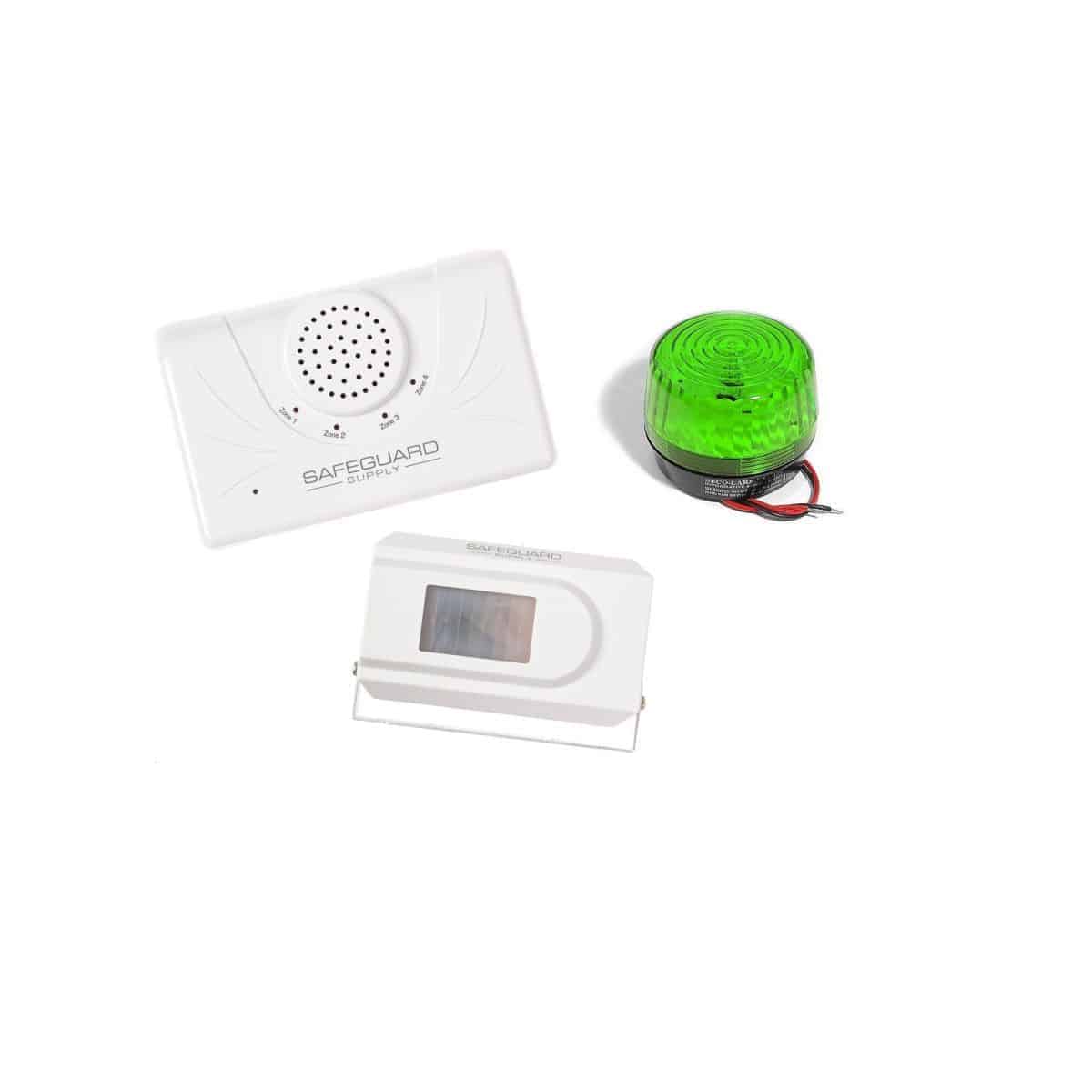

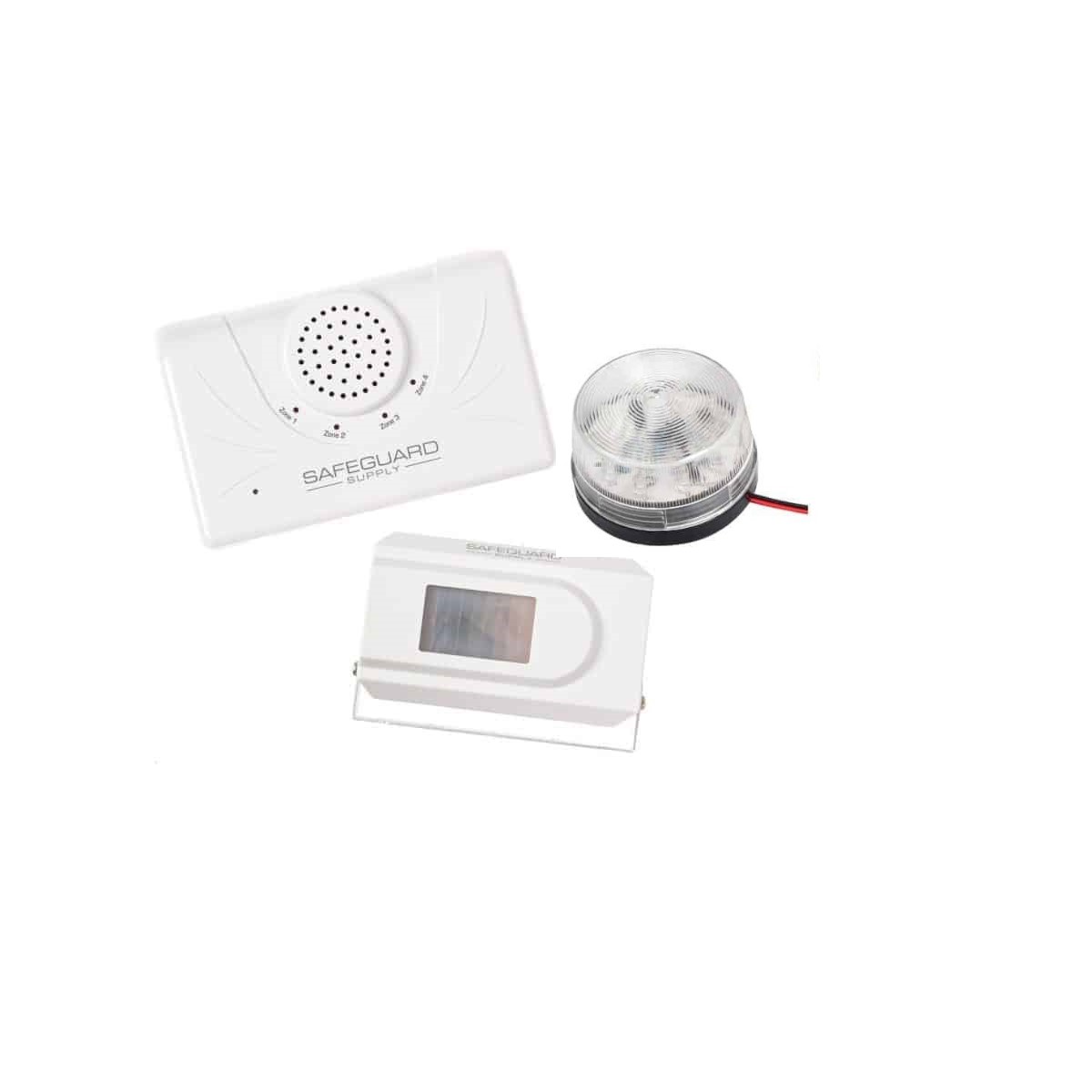

• Kit ships with 1 x ERA-PIR motion-activated sensor/transmitter, ERA-DCRX plug-in chime receiver, 15 ft. 2-strand 20 AWG wire, & LED strobe light (color choices available).
• Wireless range from the sensor/transmitter to receiver is up to 4,000 ft. line of sight.  Environmental factors will diminish distance.
• PIR sensor/transmitter is indoor rated only.  The receiver is indoor-rated only.
• PIR sensor/transmitter is powered by a 9V alkaline battery (not included).
• The receiver plugs into a standard wall outlet.
• Included strobe light (you choose color) is LED & connects to the back of the receiver.  Flashing duration is set at 5 sec (default), 10 sec, 1 min, & 2 minutes.
• 12 different sensor/transmitters may be paired to each receiver.  Other sensor types include this sensor (ERA-PIR) and ERA-UTX which functions as a push button or door/contact.
• an Unlimited number of receivers, the ERA-DCRX,  may be used.
• The receiver features 4 levels of volume control mute-off button.
• Transmitters are paired to one of four zones on the receiver.  A Small LED indicator flashes on the receiver for each zone when triggered.
• Each zone features 1 x 12VDC output (for a total of 4).  The receiver features a 1 x C-Form relay for integration with other devices.
• Low battery notice:  when the battery in the transmitter is low, the zone indicator light it is paired to will blink for 10 minutes following a trigger & the melody plays two times in a row.
• 1-year manufacturer's warranty.
• Manufactured by Safeguard Supply.

Product Dimensions:

• Receiver measures: 5.75” x 3.5” x 1”
• Sensor/ Transmitter size: 2.5'' H x 4.55'' W x 1.52''D.
• Strobe Light Dimensions are 3'' x 3'' x 1.75''

How to Wire Strobe Light (or other accessory) to ERA-DCRX Receiver

There are two methods for wiring external devices to the ERA receiver.  The most common  (image below) is to wire a 12V DC device to one of the 12V outputs.  Each zone features 1 x 12V outputs.  The other is using a C-FORM relay.  There's only one C-Form relay, but it can be associated with a combination or all zones.

How does the strobe light connect to the receiver?

Add Strobe Lights, Sirens, Fire Alarm Bells, and More.

On the back of the receiver are four connections (one per zone) where each connection can output 12V DC of power to power an external device.  Simply wire the strobe light to the zone the transmitter is paired to.  When triggered, the zone will output 12V of DC power for the selected duration (5 seconds, 10 seconds, 1 minute, or 2 minutes).  This power will trigger the connected strobe light to flash for that given period.

Each zone on the receiver has a 12V DC output, enabling a total of 4 external devices to be powered/triggered by the receiver.  A total of 3 transmitters/sensors may be paired to a respective zone.  There is not limit to the number of receivers a transmitter may be paired to.

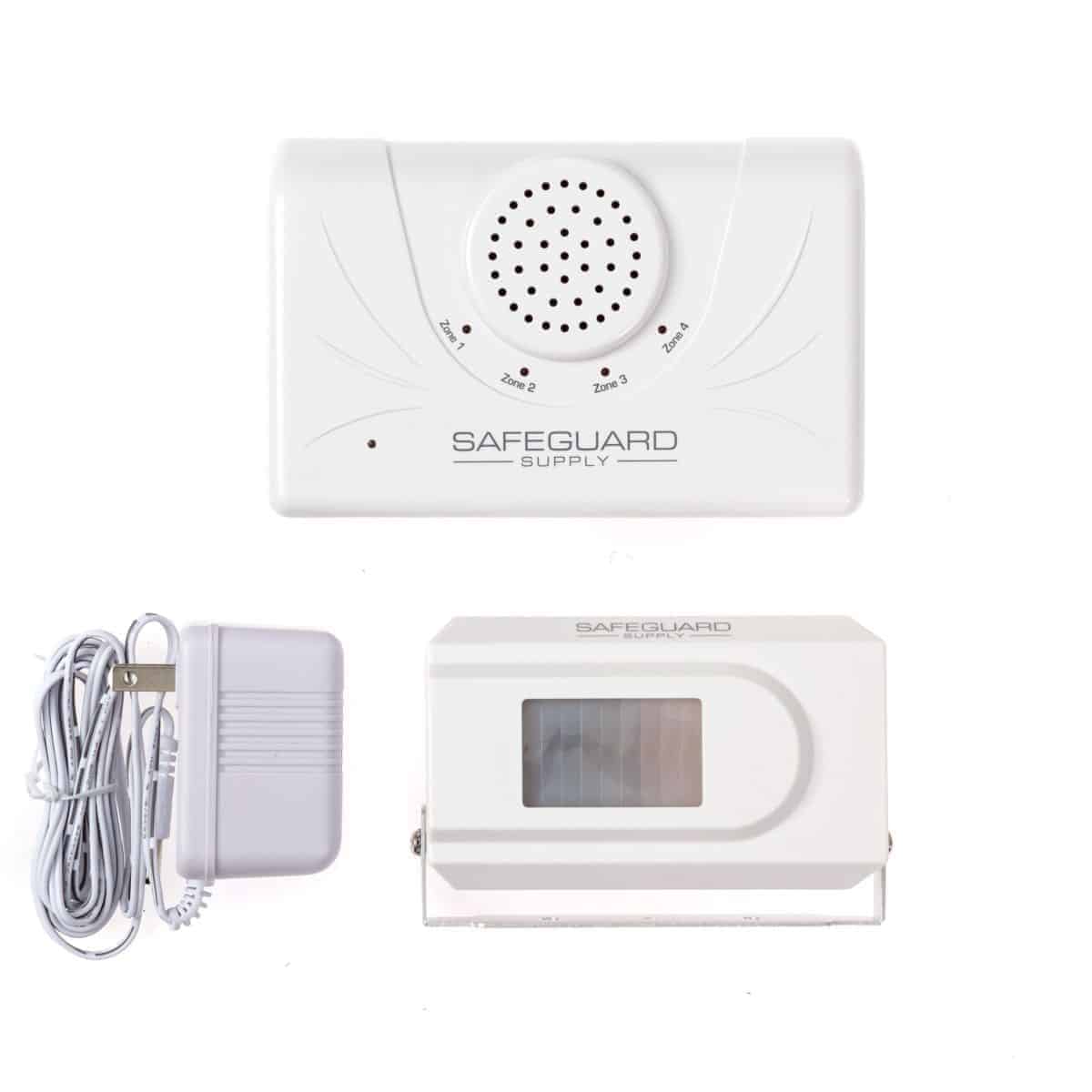

Kit Includes One PIR Motion Sensor & One Plug-in Receiver

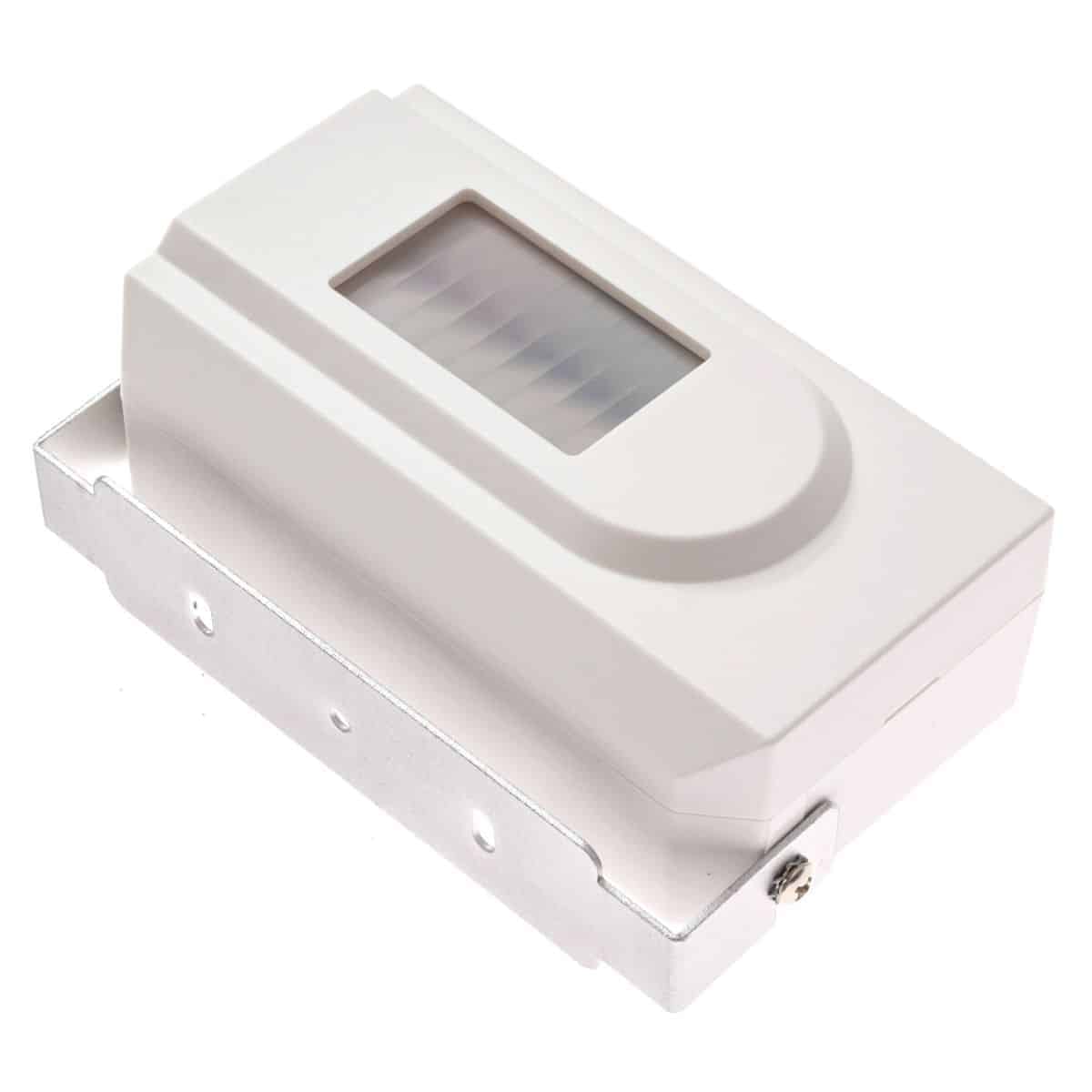

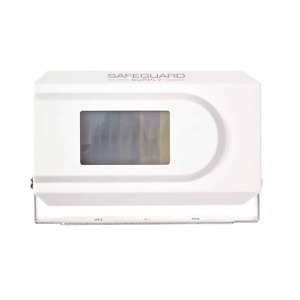

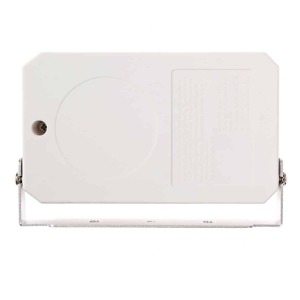

ERA-PIR Sensor/Transmitter

• Passive-Infrared (PIR) motion detector triggers when the combination of heat and movement passes through the monitored zone.
• Sensor is designed to mount over the doorway using the included bracket.  The design of the bracket makes it easy to pivot the unit to create the desired monitored zone.
• The higher the unit is mounted, the wider the size of the monitored zone.
• Sensor/transmitter is powered by a 9V battery.
• Unit sends a signal to the included receiver up to 4000 ft. away.

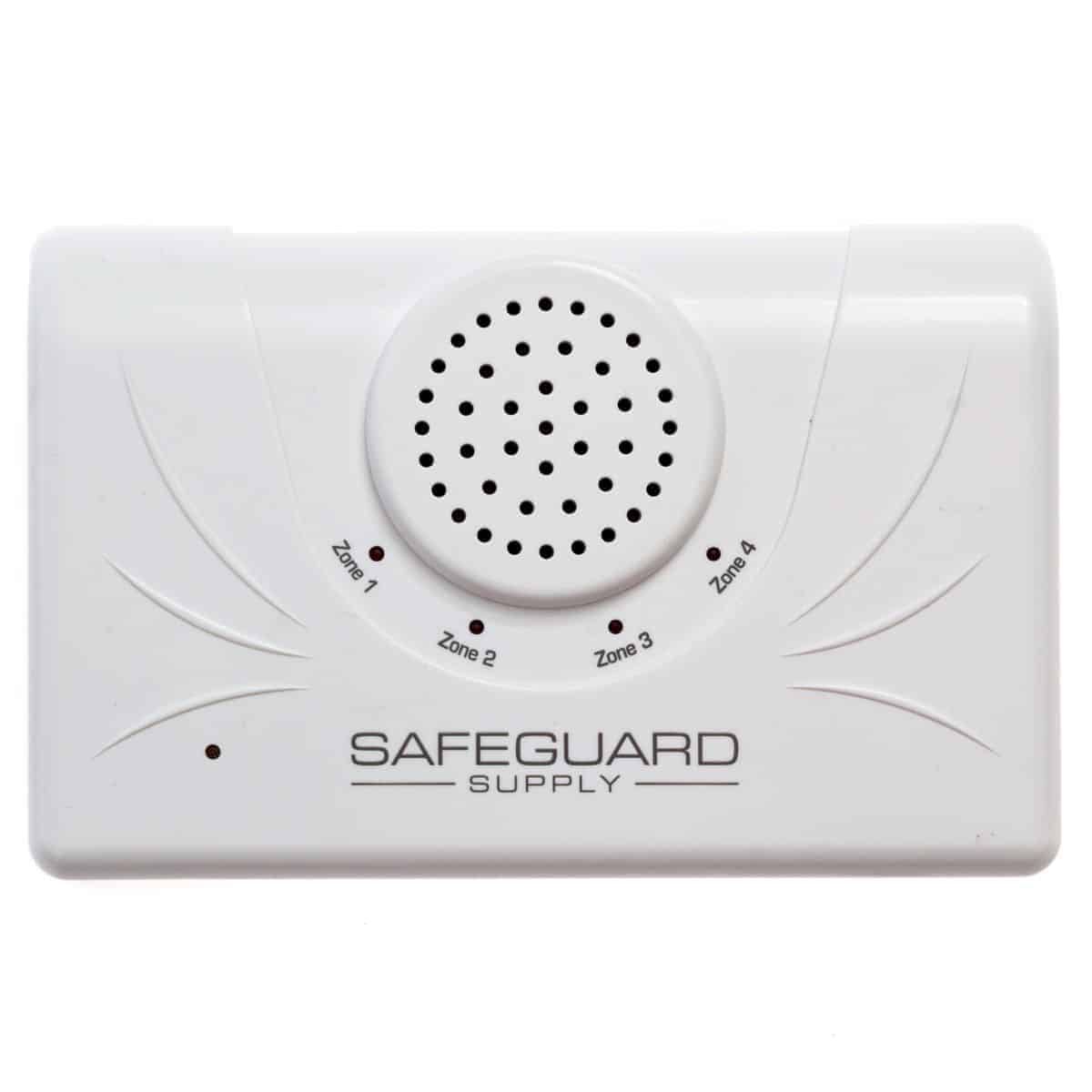

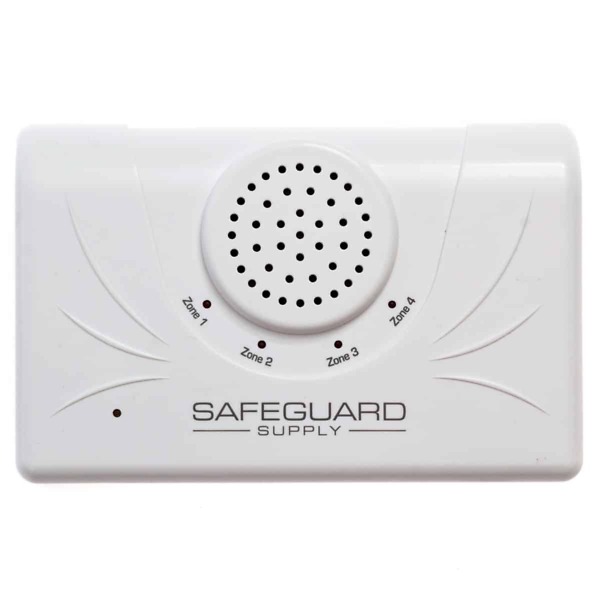

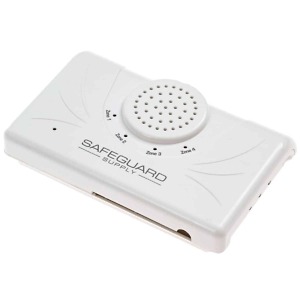

ERA-DCRX Desktop/Wall Mount Receiver

• Receiver plugs into a standard wall outlet.
• Each receiver pairs with 12 transmitter/sensors; an unlimited number of receivers may pair with a transmitter.
• Each receiver features four zones…up to 3 transmitters per zone.
• Each zone features a live 12V DC output to trigger & power an external device.
• Volume control for chime sounds.
• Low battery on transmitter/sensor indicator.
