ERA-PBDCR-STROBE Wireless Door Buzzer for Business

Need a Reliable Wireless Door Buzzer for Business?

The ERA-PBDCR-STROBE is a wireless commercial door buzzer system designed from the bottom up for the needs of retail stores, warehouses, shops, and other businesses. The kit features everything you need to have a commercial door buzzer, with five (5) strobe colors to choose from, easy to set up, and most of all, reliable and guaranteed to work or your money back!

How We Can Guarantee this Commercial Door Buzzer system

The first thought many business owners and managers have regarding wireless buzzer systems is that they simply don't work. In most cases, this is because of wireless range limitations and not properly choosing a system designed to work in commercial locations.

Wireless product ranges are advertised as line of sight, which refers to the wireless distance from the transmitter (push button) to the receiver without any interference at all. When you see a wireless doorbell kit advertised with a particular wireless range, that does not account for this interference.

Those products are typically designed for residential applications where walls are thinner and not made from materials present in commercial applications. Brick, concrete, stucco, rebar, metal shelving, etc. will all reduce any wireless signal. If you have a product with a 500 ft. range with a pushbutton mounted outdoors, the concrete walls or metal siding will cut the signal down by 60%-70%.

With a 4,000 ft. range (and the ability to increase), the ERA line of products by Safeguard Supply can easily work in almost all applications across many diverse environment types.

What's in the ERA-DSDCR-STROBE Door Buzzer Kit?

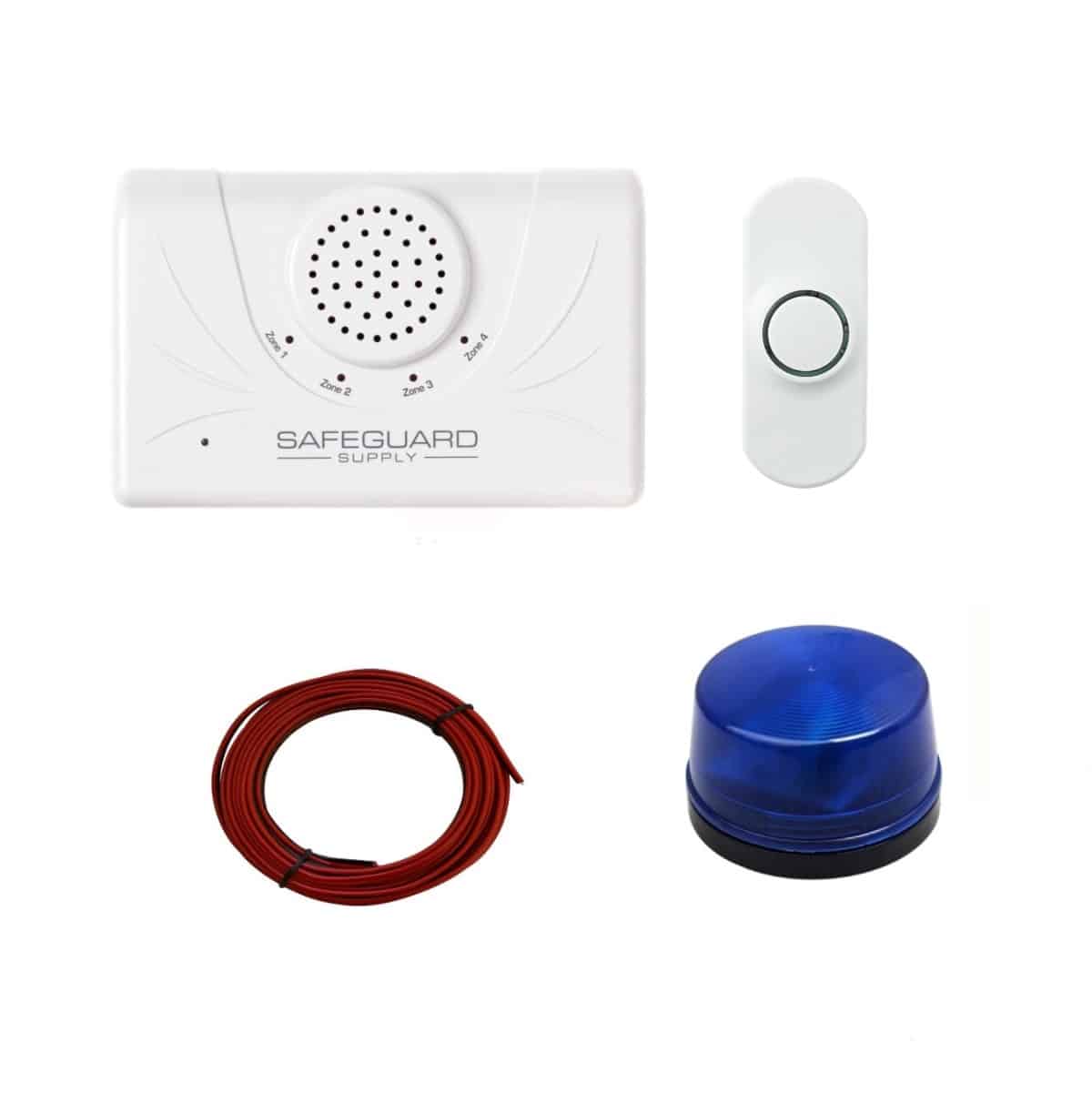

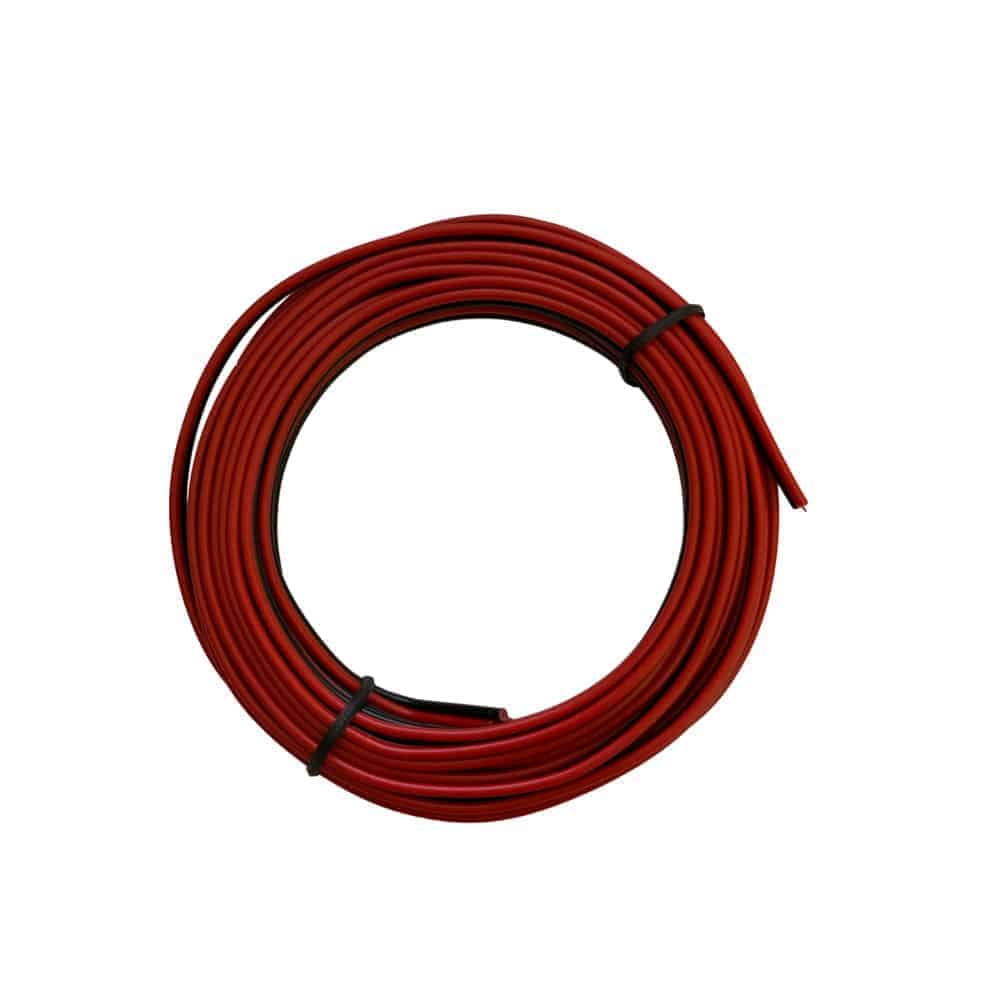

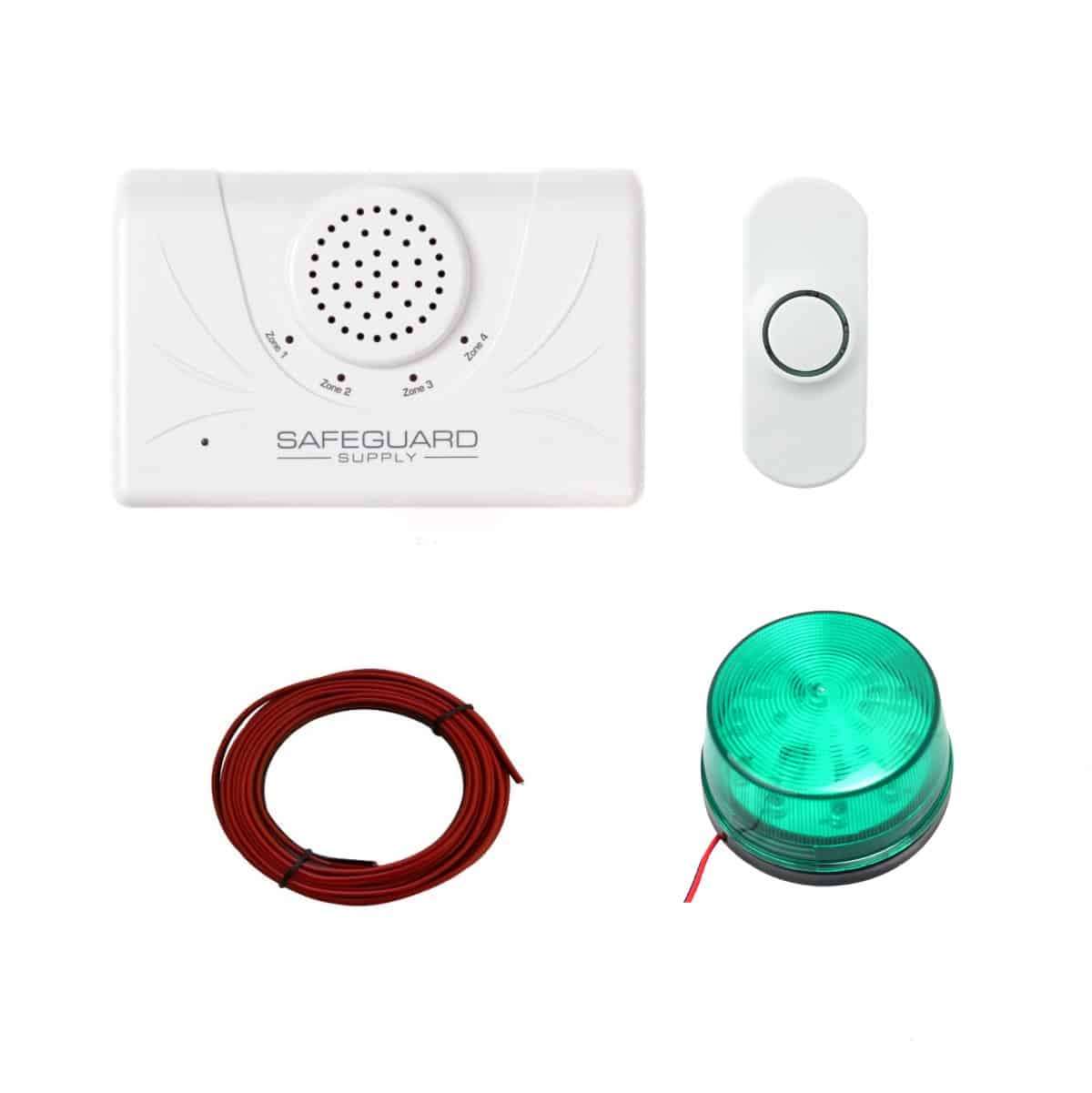

The kit includes everything you need to have a complete door chime for your business set up and running in minutes. The kit includes 1x ERA-DCRX desktop business doorbell receiver, 1 x ERA-PBTX wireless business push button, 1 x SS-STROBE flashing strobe light (choose color), and bell wire.

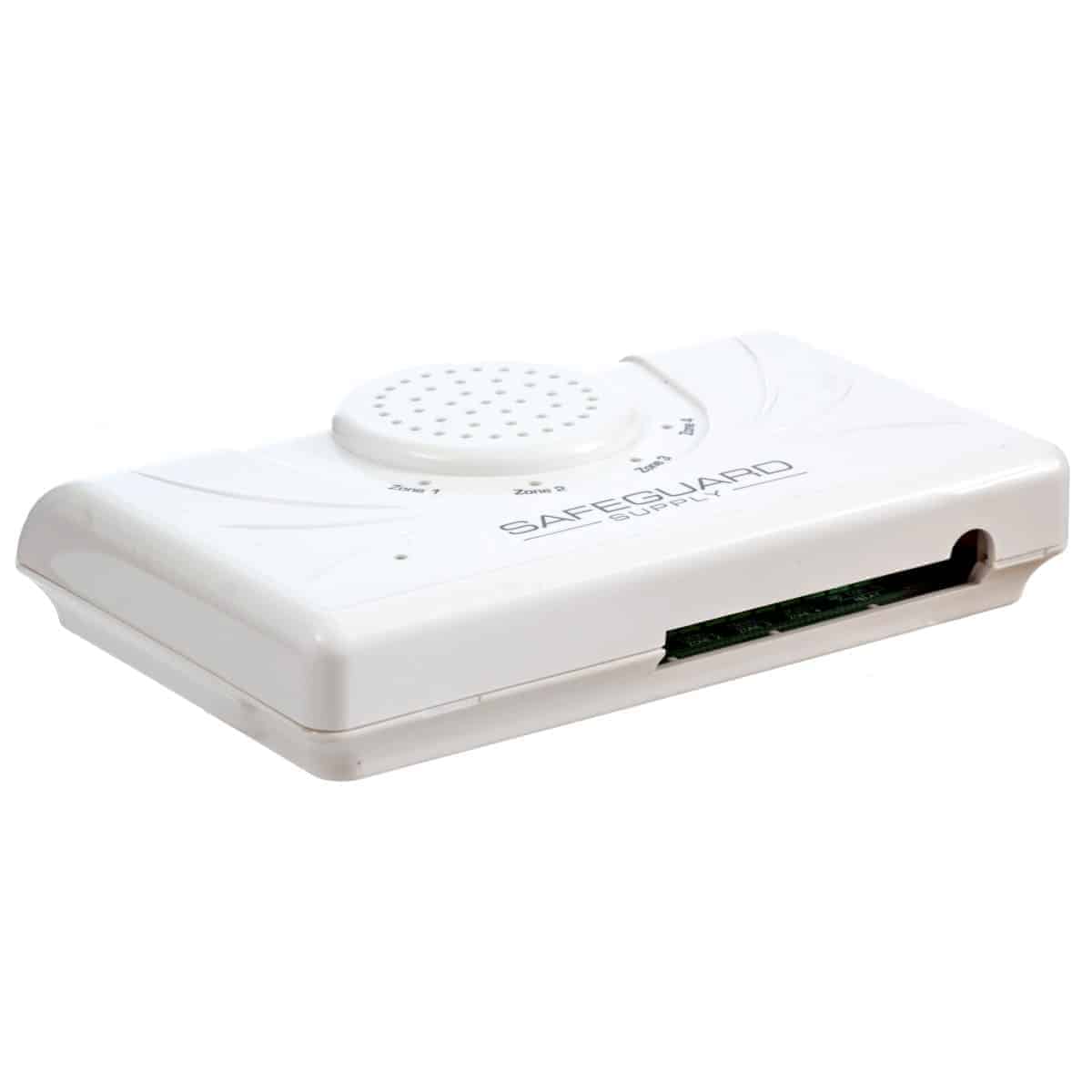

ERA-DCRX Desktop Receiver

The ERA-DCRX is a desktop (or mounts on the wall) receiver that plugs into a standard wall outlet. It has four (4) zones with the ability to work with 12 different ERA transmitters/sensors. Each zone will play a selected melody when triggered by a sensor or transmitter.

Each zone also features a 12V DC output for accessories such as strobe lights, sirens, fire alarm bells, and more. When the corresponding zone is triggered, the connected accessory will fire. For example, in this kit, you would connect the included blue strobe light to a zone. The included push-button is paired or programmed to a zone. When a visitor pushes the button you have mounted outside, the receiver plays the selected chime sound, and the strobe light will flash for a selected duration (5, 10 seconds, 1, 2 minutes).

The receiver also features 4 levels of volume and a mute/off button. At the loudest setting, the receiver is approximately 85-90 dBA loud. The receiver also features small LEDs on the cover that will flash when that zone is triggered.

• Plugs into a standard wall outlet
• Sits on a desktop or mounts on the wall
• 4 sound levels + mute
• Works with up to 12 different ERA transmitters.
• 4 x 12V DC outputs
• 1 x C-FORM relay
• Set duration of 12V DC output for 5 seconds, 10 seconds, 1 minute, 2 minutes.
• Works with all ERA transmitters and sensors such as the ERA-PBXT (1 x included in this kit), ERA-PIR motion sensor, ERA-DSTX outdoor driveway motion sensor, and the ERA-UTX door contact and push button.
• Small, brightly flashing strobe light included (choose color).

ERA-PBTX Outdoor Wireless Push Button

This is an outdoor-rated wireless push button with a range of up to 4,000 ft. from the corresponding receiver. The wireless button mounts on the exterior wall using the included double-sided mounting tape and/or the included mounting screws.

Included in the kit is a long-lasting CR2450A lithium battery for long-lasting life (up to 2 years). In addition, the push button has features not normally seen with battery-powered wireless push buttons. The center push features a low glow LED display for easier location at night.

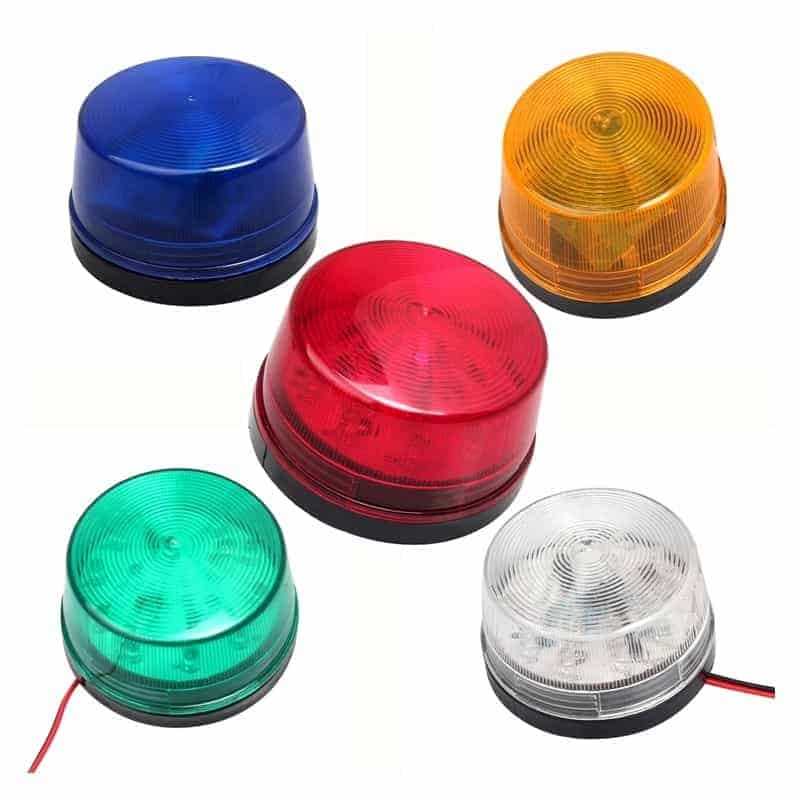

SS-STROBE Blue Flashing Strobe Light

The kit also ships with a small flashing strobe light. Don't let the small size fool you. When triggered by the 12V DC output on the receiver, the strobe brightly flashes to provide a visual notification that works great in loud shops, or conversely, when the volume is turned down and you only want to provide a light when a visitor is at the door.

SS-STROBE-Kit Dimensions:

• Strobe light dimensions are 3'' x 3'' x 1.75''
• Receiver dimensions are 5.75” x 3.5” x 1”
• Push button dimensions are 2.75'' H x 1.25'' W x 0.75'' D

Expand Your Kit with Other ERA Products by Safeguard Supply

Like all Safeguard Supply products in the ERA line, the components in this kit are compatible with all the products in the ERA line (except the ERA-PIR-SPK which is a stand-alone product).

Simply add additional receivers such as the ERA-DCRX desktop receiver featured in this kit, the ERA-RXPG plugin receiver with flashing strobe, or the ERA-VPRX portable receiver with rechargeable batteries. This allows you to expand the listening range by adding as many receivers throughout your office as you want.

In addition, Safeguard Supply also offers a wide range of sensors and transmitters that are also compatible, such as the ERA-PIR indoor motion sensor, the ERA-DSTX outdoor motion driveway sensor, and the ERA-UTX magnetic door contact.

How to Wire the Strobe Light to the ERA-DCRX Receiver

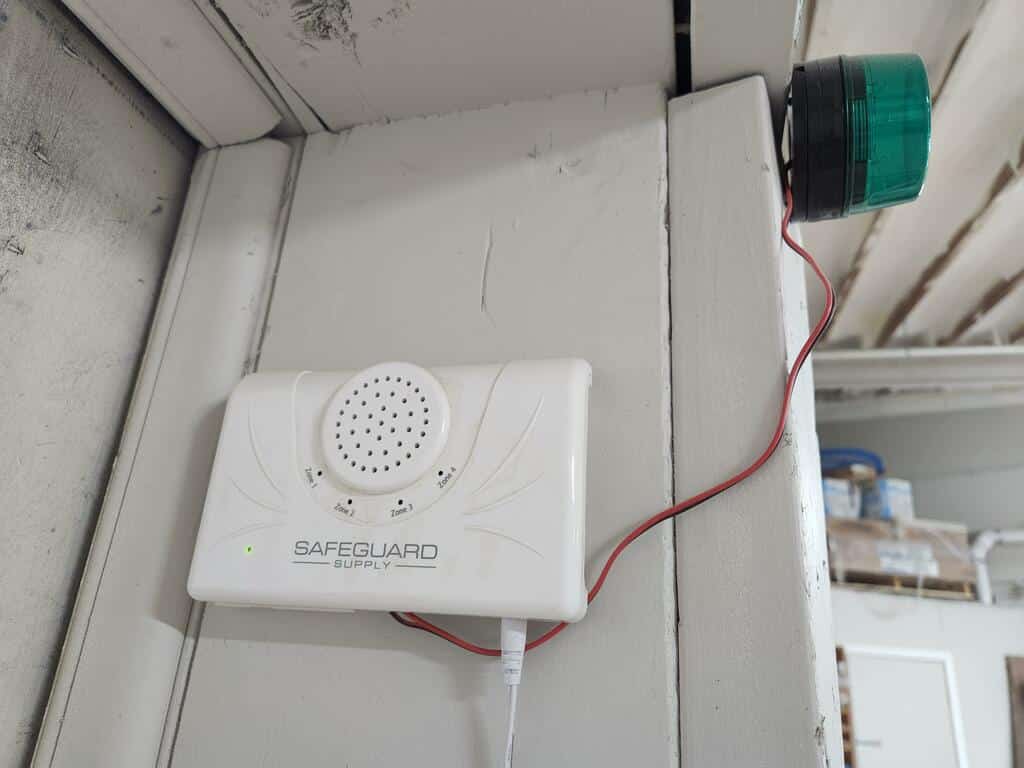

Example of Chime Receiver & Flashing Strobe Mounted to Wall in a Warehouse

Hear the Available Melodies on the ERA-DCRX Receiver
